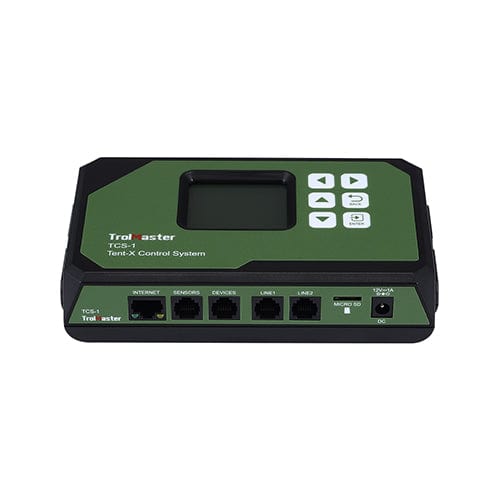

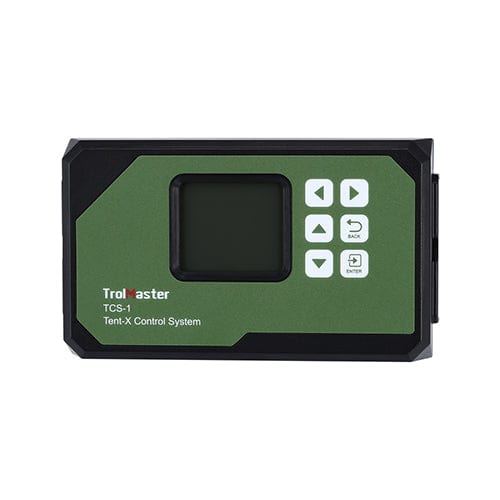

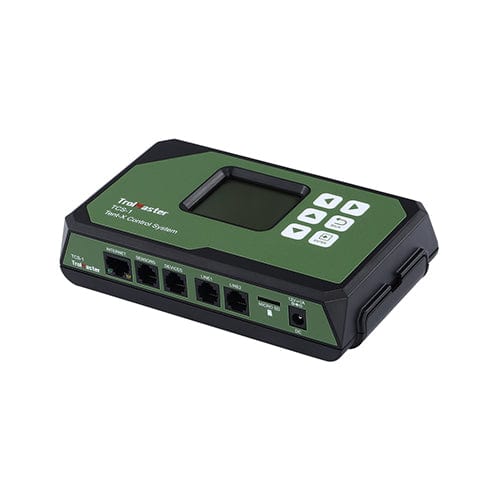

TrolMaster Tent-X System Main Controller (TCS-1)

Overview

Tent-X is a fully customisable grow controller that can control virtually every aspect of your growing environment. Designed for use with tents, this controller stands out at is allows you to effectively control the full environmental parameters as well as irrigation schedules.

General Information

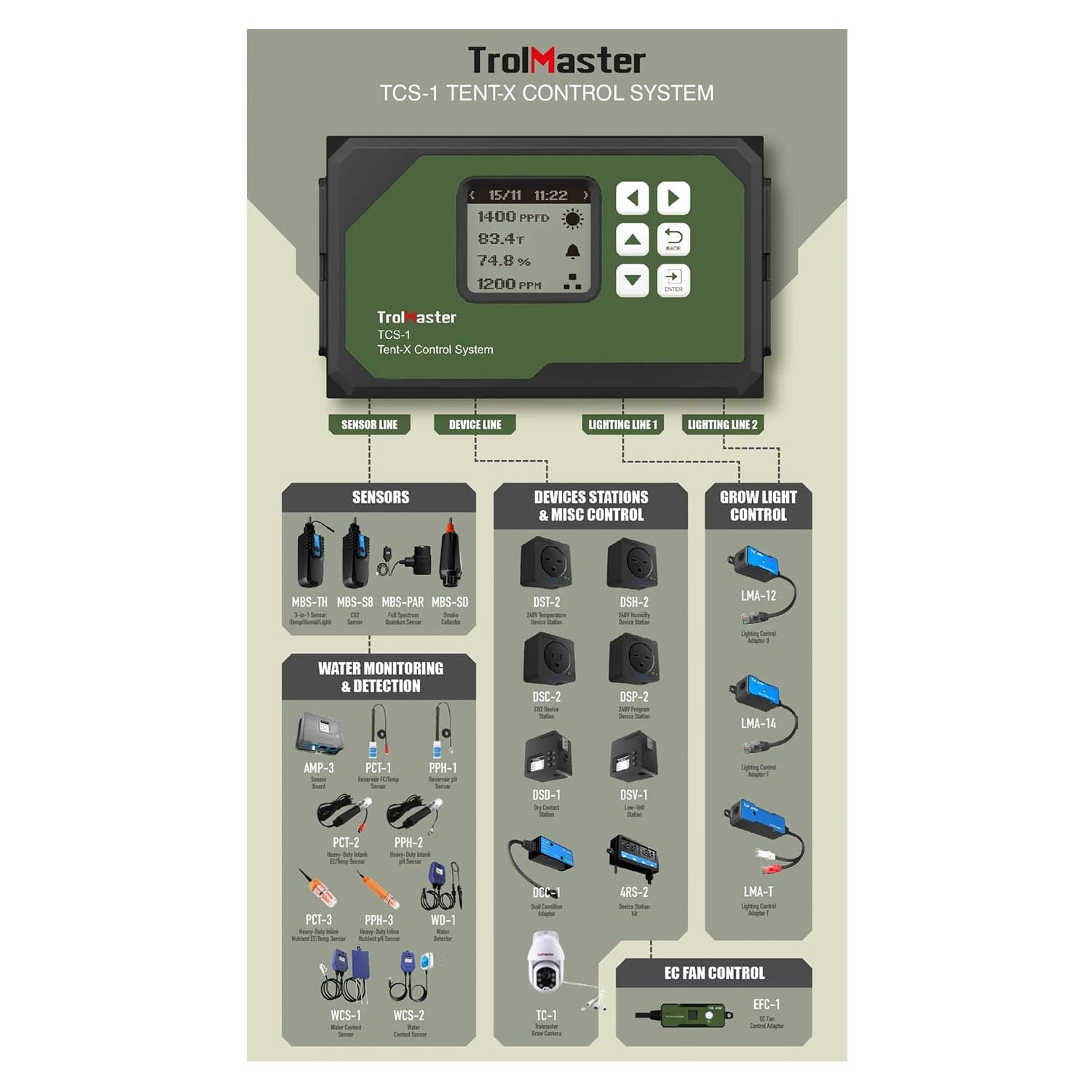

It comes with a 3-in-1 temperature, humidity, and light sensor, the MBS-TH. Users can daisy-chain the MBS-TH sensor with the CO2 sensor (MBS-S8), the full spectrum quantum sensor (MBS-PAR), and the smoke and water detectors into the TCS-1's SENSOR port.

Users can also connect an AMP-3 sensor board to the Tent-X, and connect the Water content sensors (WCS-1/2) or the WD-1 water detector to the sensor board. Additionally, the TCS-1 supports the connection of up to four DS-type plug-in control models, allowing you to connect devices that can control the environment and irrigation.

The TCS-1 is the brain that unites all your climate control and irrigation devices into one being, allowing your devices to work together to create the optimal growth environment for your plants.

Benefits

• All-in-one modular system design
• 3-in-1 sensor included for Temperature, Humidity and Light
• Easy installation. No need to re-wire electricity system
• Flexible self-customisation
• Free smartphone App allows you monitor and control anytime anywhere
• Smartphone Control

• Data Logging

• IoT Connectivity

Specifications:

• Input Voltage: 100-240VAC, 50/60Hz
• Certifications: ETL/FCC
• Max Number of Lighting Fixtures: 256*2

• Max Distance to Device to be Connected: 1000 meters
• 3-in-1 (Temp/Humid/CO2) Sensor: Max 1pc per set
• CO2 Sensor: Max 1pc per set
• Full Spectrum Quantum Sensor: Max 1pc per set
• Smoke Detectors: Max 1pcs per set
• AMP-3 Sensor Board (pH/EC/Temp): Max 1pc per set
• Temp Device Stations: Max 2pcs per set
• Humid Device Stations: Max 2pcs per set
• CO2 Device Stations: Max 2pcs per set
• Program Device Stations: Max 4pcs per set
• Water detectors: Max 2pcs per set
