DAB Esylink Kit Complete w/Panel & Power Supply

General Information

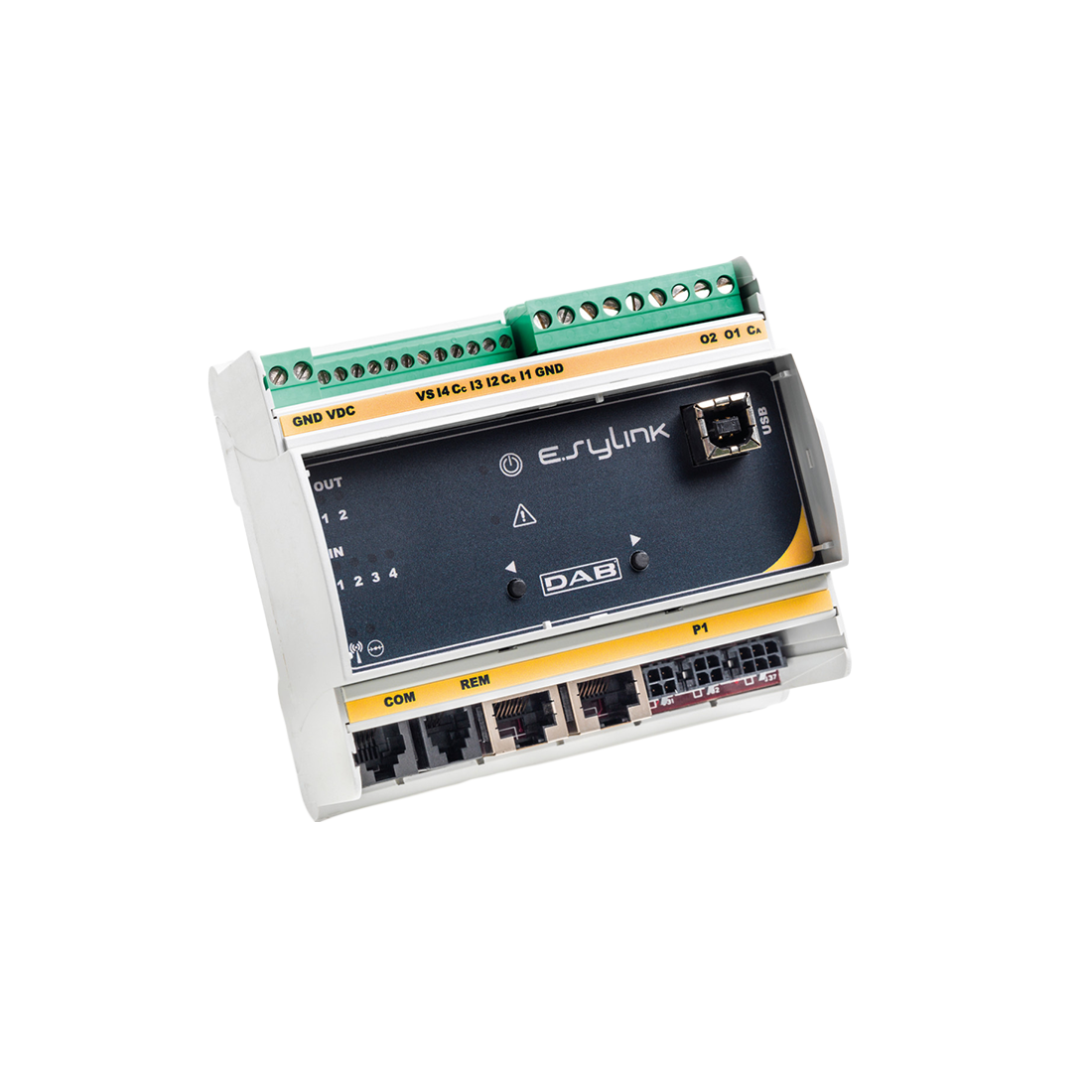

ESYLINK is a DAB accessory equipped with a wireless interface (802.15.4) designed to enhance the functionality of the ESYBOX pump system. ESYLINK is provided to be wired and enhances the monitoring, control, and maintenance capabilities of ESYBOX systems through wireless connectivity and versatile input/output options.

Benefits

• Dedicated wireless connection with ESYBOX
• Supports 4 digital inputs (pressure switch, float, etc.)
• Controls 2 relay outputs (alarms, etc.)
• Capability to connect an auxiliary pressure sensor
• Allows for ESYBOX software updates
• Easily updated via PC
• Designed for installation in standard electric boxes with DIN modules (size: 6 modules)
• LED indication for status and alarms

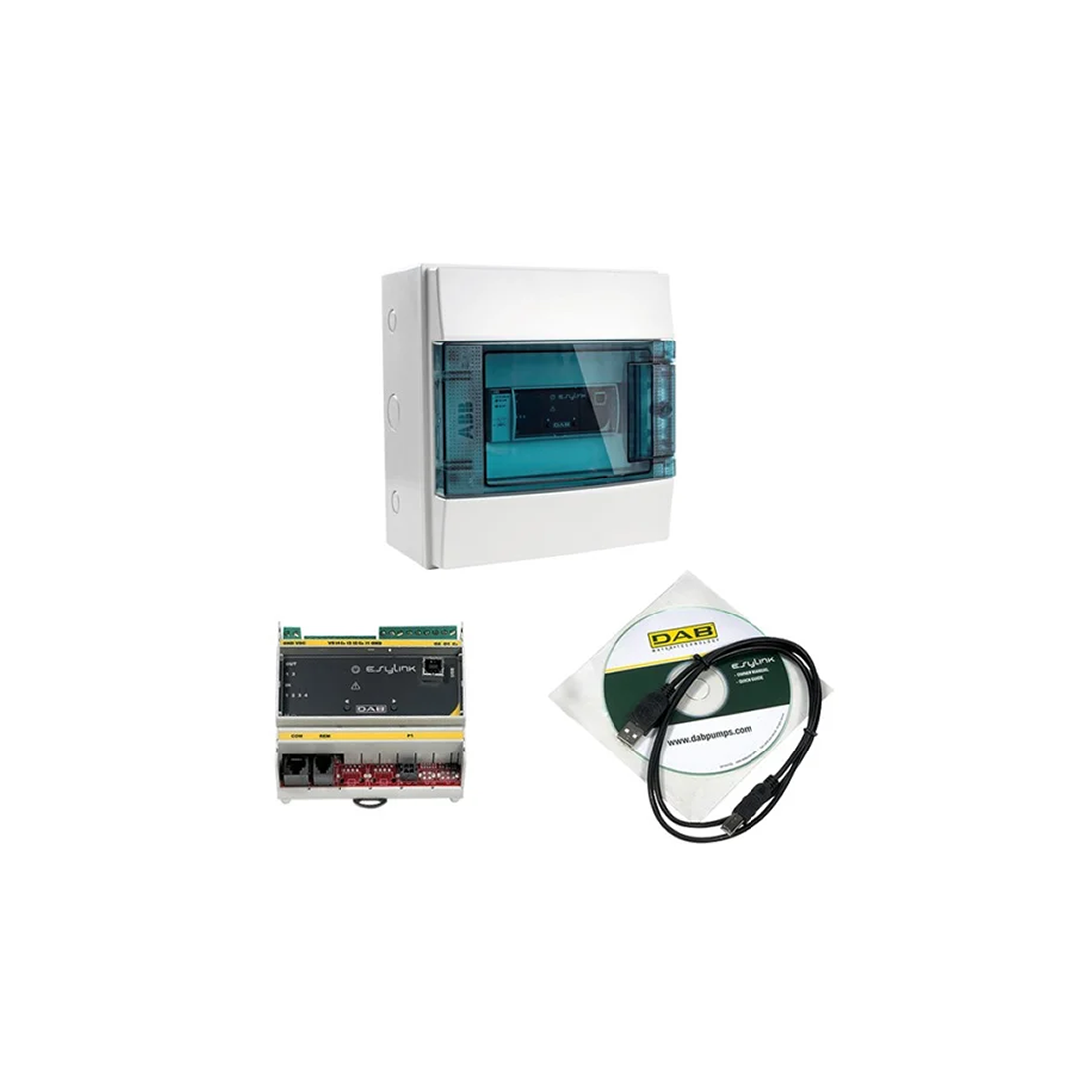

Included Components:

• ESYLINK device
• USB cable
• 8DIN electric box
• Power feeder
• 3 cable clamps

Power Specifications:

• Supply voltage: 24 V ± 20%
• Current: Minimum 55 mA @ 24V, Maximum 150 mA @ 24V
